Switch Datex Ohmeda On/Stand by Assembly

M1115795-S
1006-8287-000 1006-8430-000 1006-8452-000
New
Anesthesia Delivery
Aespire
GE HealthCare
GE HealthCare
N/A
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

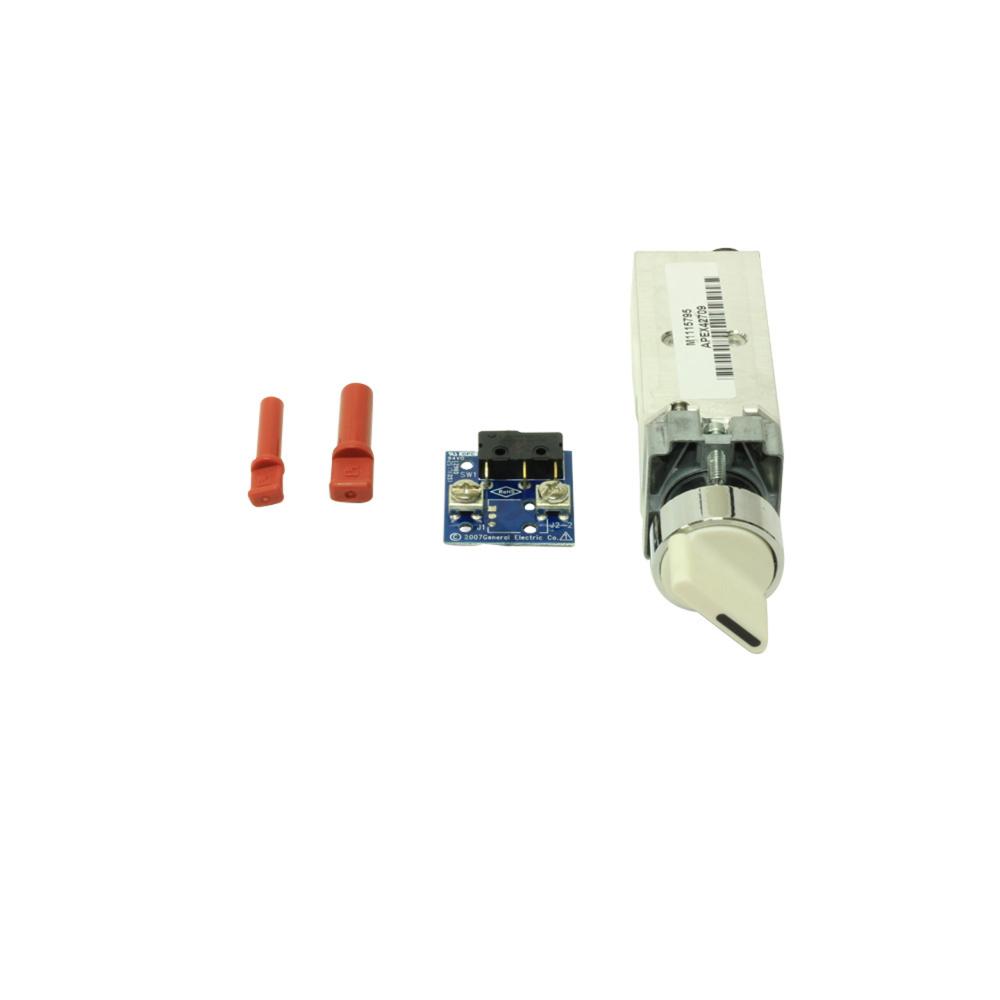

The On/Standby switch is an electro-pneumatic assembly that acts as the main pneumatic and electrical on/off switch for an anesthesia machine. The switch assembly has as its major components a rotary actuator, a manifold body and a printed circuit board assembly (PCA). When the On/Standby switch is placed in the on position, it provides an electrical contact closure signal to the electronics of the machine and enables the flow of metabolic oxygen and optionally air to the pneumatic circuitry. A normally closed, snap-action, micro-switch realizes the electrical contact closure interface of the On/Standby switch assembly and is part of the PCA (along with the interface connector) that is mounted to the pneumatic manifold. A mechanical actuator, integral to the pneumatic manifold, contacts the micro switch plunger upon state change of the front panel knob from ‘On’ to ‘Standby’ causing the normally closed switch contacts to open; instructing the machine to turn off its power management subsystem. Likewise, when the front panel knob is moved from ‘Standby’ to ‘On,’ the mechanical actuator relieves its force on the micro-switch plunger and the switch is allowed to snap close its contacts, instructing the machine to turn on its power management subsystem.

Compatible Products

Aisys

Aisys

Avance

Avance

Aespire

Aespire

Aestiva

Aestiva

Equivalent Part

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
1006-8287-000

SW AIRMAN REPL KIT AESTIVA MACHINES

1006-8430-000

SW ON/STANDBY O2 AIR ELEC W/NONREM FTGS

1006-8452-000 ASSY-MSN, SWITCH D-O ON/STANDBY ASSY, Manufacturing assembly
