Collimator Prodigy
LU8915ST
LNR8915
X-Ray
Other X-Ray
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.


Product Overview

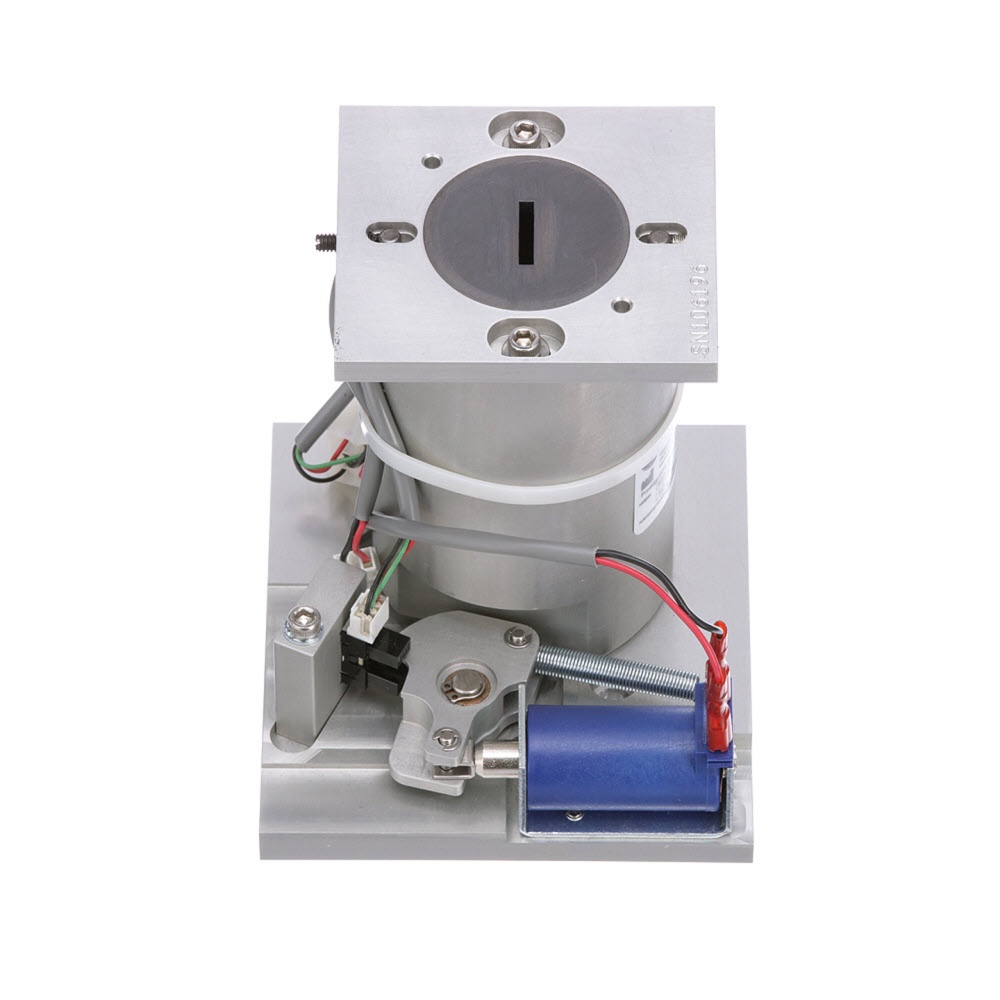

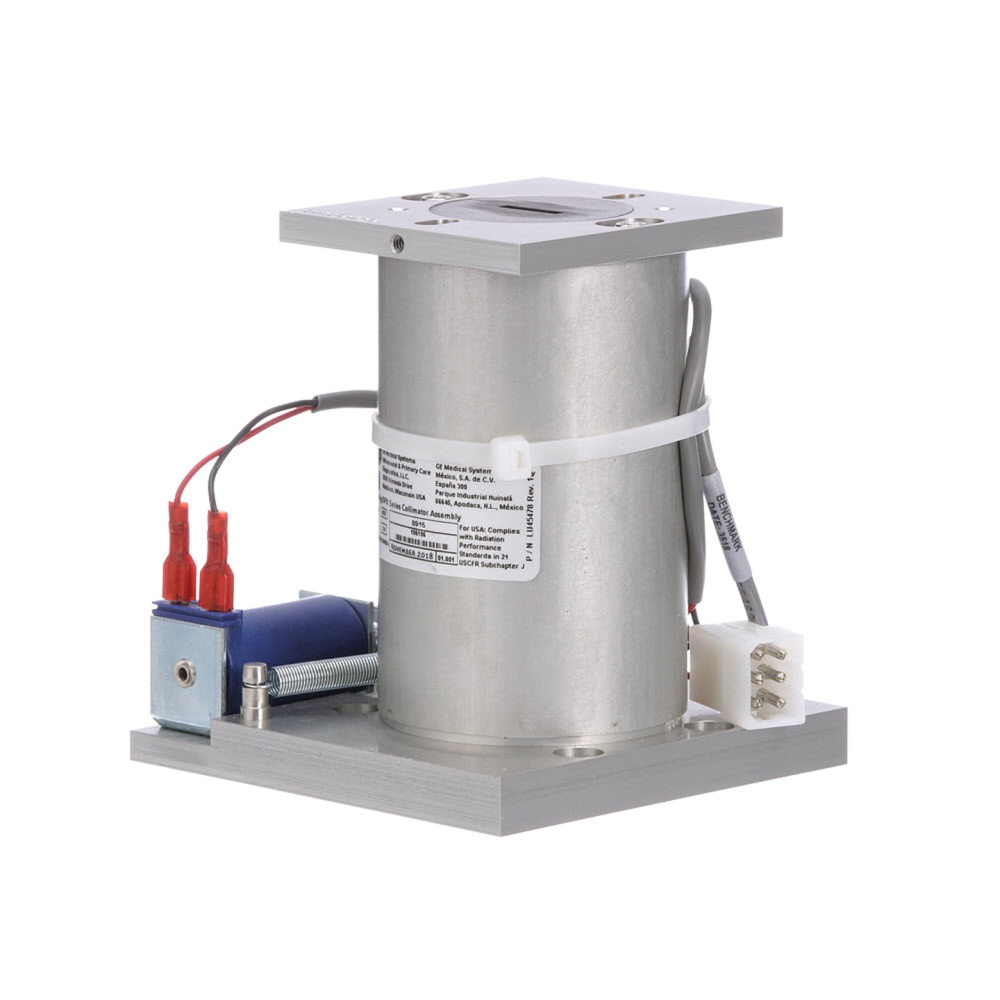

The Collimator Prodigy is a collimator which is designed and manufactured with high precision techniques and with adequate protection in order to ensure proper function. This product is free of all burrs and sharp edges. Its major components are the base plate assembly, shutter, tube, and top plate. The base plate assembly contains a lead shield tube insert, shutter pivot pin, spring holder pin. The tube is shielded by lead and inserted into the pocket groove of top plate as well as the base plate and secured by applying Armstrong A-12 epoxy resin adhesive. The lead insert is below flush on the surface in both top plate and base plate with no flaring around groove edges of the pins (shutter and spring holder) in the base plate. The flange completely engages with the shutter by pressing the sleeve bearing. The extension spring is attached with spring holder. The top plate is fitted with a lead shielded tube by dowel pins (which made up of alloy steel) and Armstrong A-12 Epoxy resin. The lad shielded tube flush is trimmed to the tube. The shutter is comprised of extension springs, spring holder, solenoid, solenoid plunger, linkage pin and E-Rings.

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
LNR8915

LNR8915
