CSBC for Prodigy P3-P7
Other X-Ray
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number


Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Product Overview

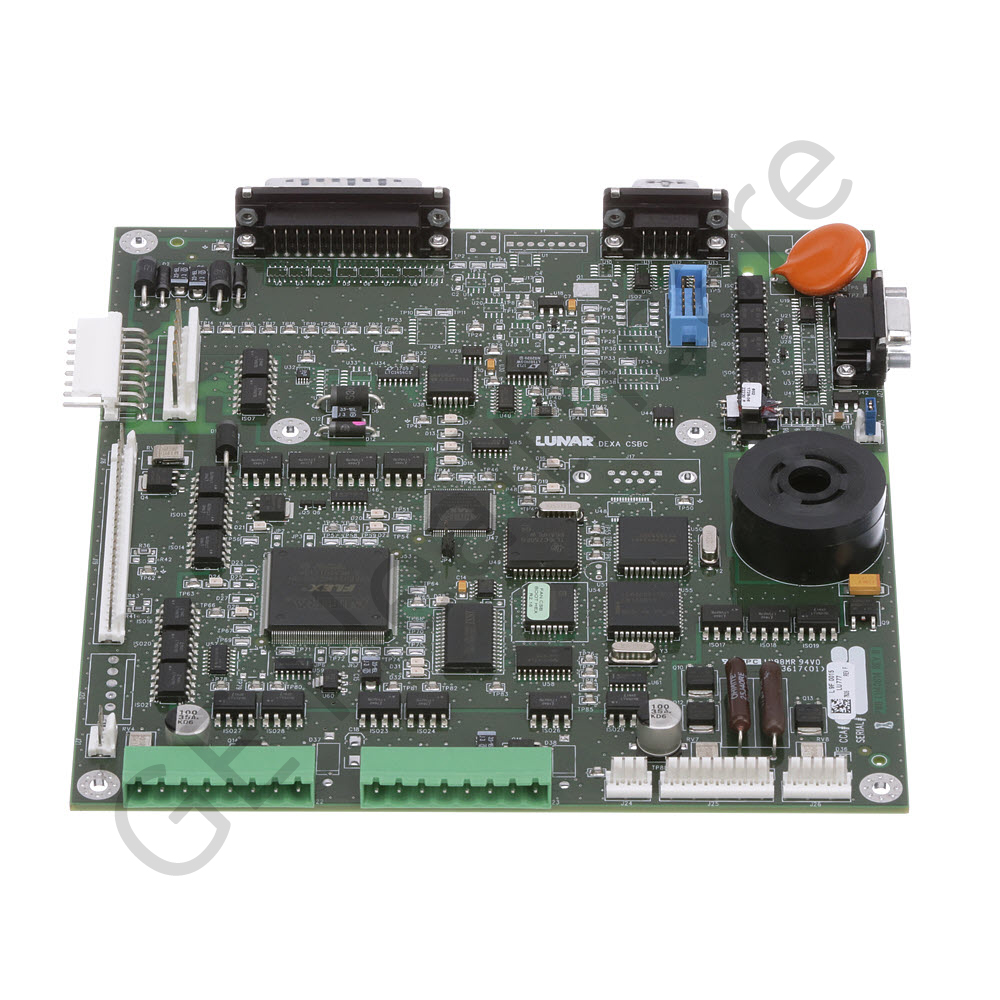

This CSBC (Combined Single Board Controller) for Prodigy P3-P7 is a part of the DEXA series bone densitometers. This circuit card assembly is an embedded controller of the DEXA systems. It is responsible for all detector , Xray, motion, and support operation. It runs as a slave to a host PC. The CSBC employs an Intel 80C251 micro-controller as its processor. This processor provides 1K of onboard RAM and is clocked at 16 MHz using a crystal. The CSBC contains a single 128K x 8 bit SRAM which provides read/write memory. The CSBC printed wiring board (PWB) is an eight layer rectangular board measuring 7.400” x 8.100”. The board thickness is specified as 0.093” (standard is 0.062”) to increase stiffness and stability for cable insertion. The PWB is mounted via four mounting holes located 1/4” from each corner and 2 additional interior mounting holes. The components are primarily surface mount, with board connectors, headers and a few single-style ICs being the only exceptions. Through-hole connectors were used for better stability and ruggedness for secure cable and board connections. This board can be used with GE's Prodigy series bone densitometers.

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
