Product Overview

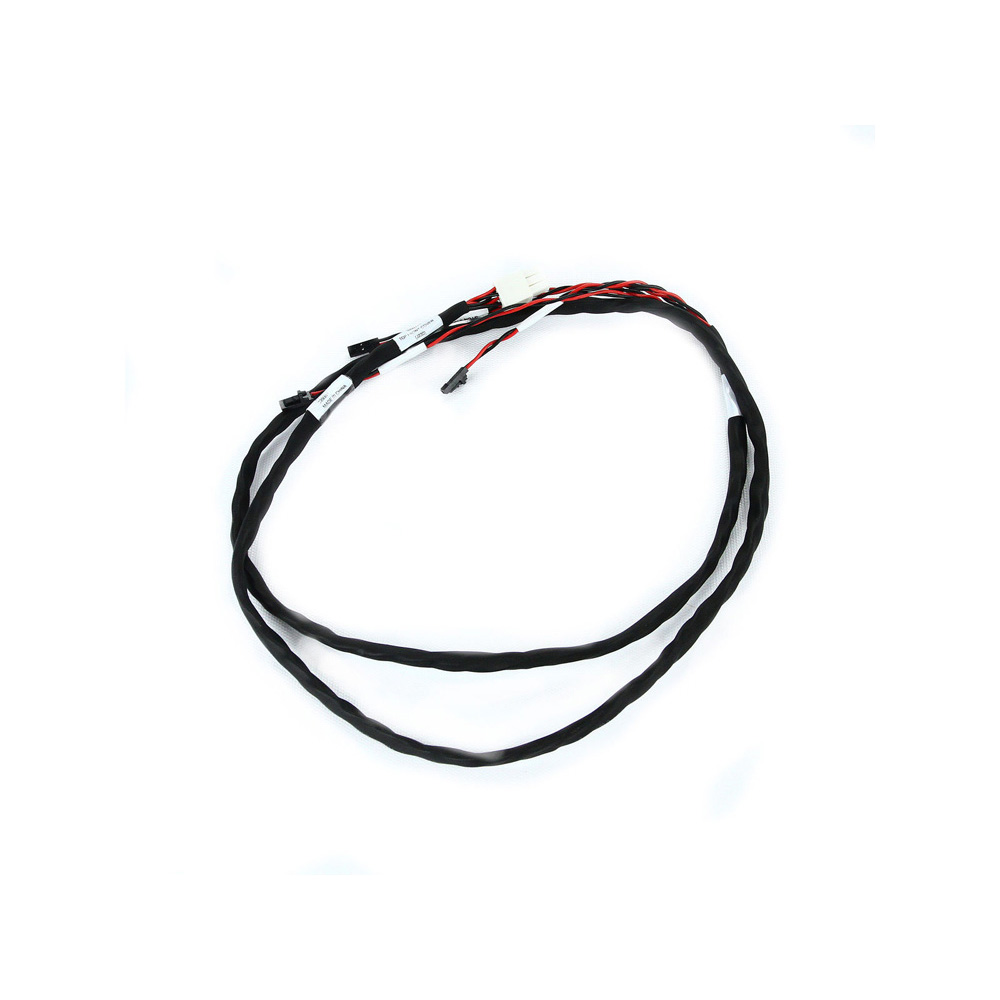

This 1460 mm long twisted pair cable harness comprises of four identical 2 position-1 row connector at one end and one 9 position-3 row connector at the other end. The connection between the connectors are established using high quality UL1007, 22AWG wires, which are color coded in red and black. This cable assembly is used in the front positioning Global Table assembly (GTTS) and comes with pre-labeled information about the part number and cable connection. Connector A1 is to be connected to GTCN J15 using a 1460 mm long cable, connector A2 to GTCN J16, connector A3 to GTCN J17, connector A4 to GTCN J18 and all wires from these connectors goes to connector A4 which is to be connected to J230. This cable assembly is isolated and protected using heat shrink tube which also provides good abration resistace to the cable. This cable harness is compatible for use in the assemblies of GT1700 N9 and GT2000 N9 table which are used with GE's Optima 660, VCT, Revolution EVO, Lightspeed RT, Discovery 750 HD, Discovery ST, Discovery ST (64 Slice), Discovery ST (128 Slice) PET/CT Systems.
Equivalent Part
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent part | Part Details |
|---|---|
| 5120574 |
