Connector Board Assembly 3PP

5314411-3
5314411 5314411-2
Ultrasound
Other Ultrasound
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Product Overview

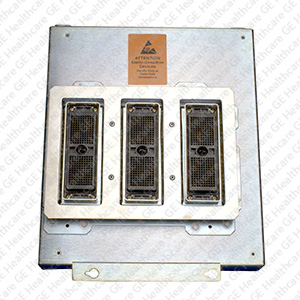

The Connector Board Assembly 3PP (3 Probe Port) is a part of GE ultrasound machines. The assembly includes Connector Board with 3 Probe Port, EMI Cover, Shield Fingers, Screws and ESD Paper Sticker. These parts are assembled togeather to form the complete assembly. The connector board comes with 3 Probe Ports which are connected to 3 banks of relays, one each for each relay bank. It has one FPGA that acts like a buffer for the Probe related signals and is the interface between the probe and the main Transmitter Board FPGA. There is a I2C slave also implemented on this FPGA that responds and interfaces with the TX board for probe selection and control. The Power supply to the TX board from the PDB board is connected via the Connector Board. The circuit board is 12 layer board made up of a flame retardant glass laminated FR4 material. A steel,cold rolled close annealed cover is used in the assembly. It is zinc plated to add more corrosion resistance to the surface of the cover. The shiled fingers are used to fullfil the shielding and grounding needs of the connector interfaces. The assembly can be used with GE's Logiq P3 Ultrasound systems.

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
5314411
5314411-2
