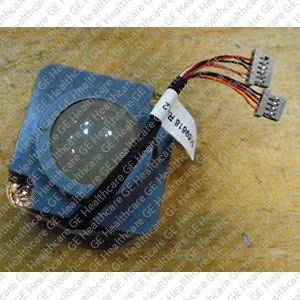

Trackball Assembly
5160471
Ultrasound
LOGIQ e
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.


Product Overview

The Trackball Assembly is a component with a cable that is used in an ultrasound device as a cursor controller. It is used during the ultrasound scanning to scroll through and find the area of interest. The trackball can be installed and removed easily on a device. It is a cap ended mouse, which can be turned within a socket. A proper cable is selected for the OP panel. The one end of the trackball interface cable is attached with a Hirose DF-13 series connector. These Hirose connectors are used since the connector pins are closer to the trackball and they have two locking tabs at the edge of the connector. The cable should be tied by insulation tape tightly in round shape. The trackball is well insulated, and the shielding sheets have good clarity, which is treated chemically on either one side or both sides. 3M ™1350F-1 tape is an electrical insulating polyester film which meets the flame retardancy requirements of UL 510. This assembly is a spare part, which is placed in a protective bag and should be individually packaged for an international shipment.

Compatible Products

LOGIQ e

LOGIQ e
