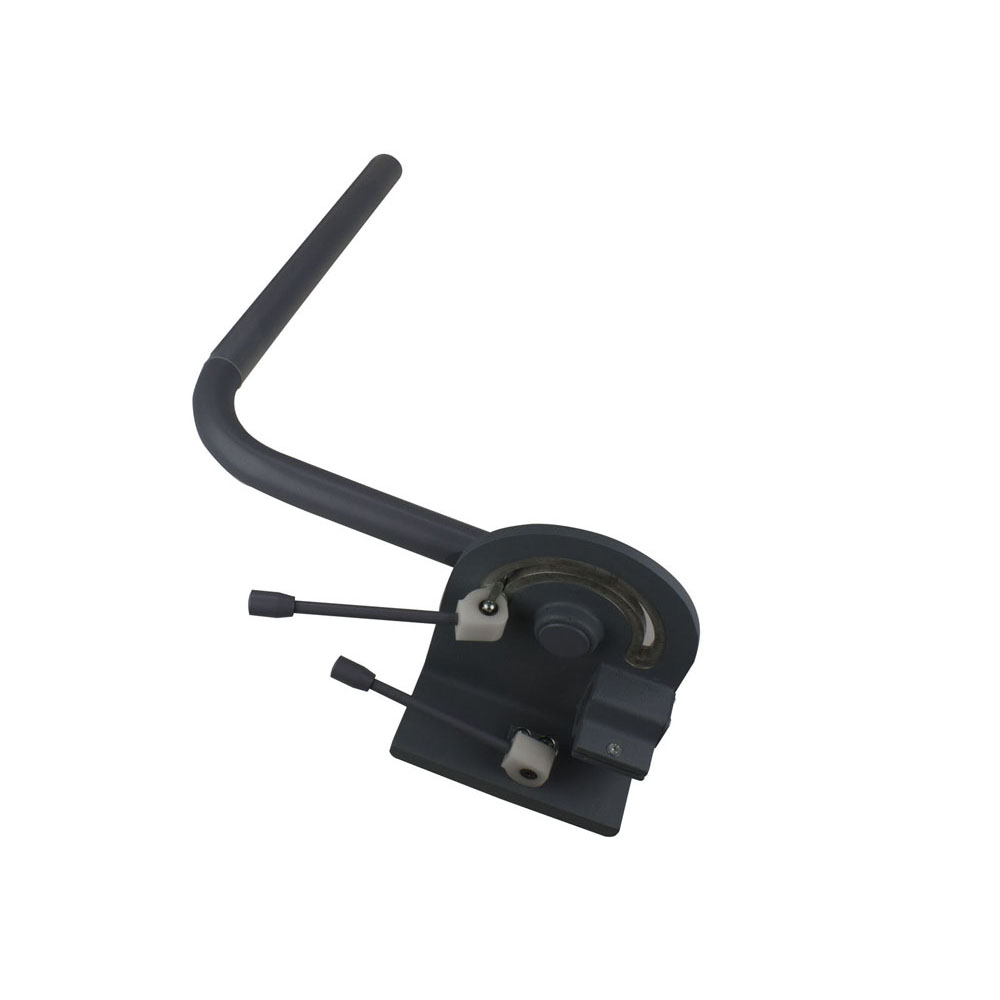

Right Side Assembly Improved Pivot
Definium 8000
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number


Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Product Overview

The Right Side Assembly Improved Pivot is used in the Image Pasting patient barrier device. The Image Pasting patient barrier is intended to be used as a patient positioning and support device. The Image Pasting application, in conjunction with a receptor, primarily includes standing long spine and standing long leg examinations. When the barrier is in exam positon, the operator shall be required to lock and secure the barrier to the floor at its current location. This feature assists in consistent positioning and adds stability. The lateral support bars, which are essential for the safety, have residual friction in the pivoting mechanism which will provide sufficient friction to maintain any angular position (safety) of the lateral support bar(s) when the positive locking is not engaged. The residual friction in the pivot joint would be of magnitude which approximates the mass of the arm (between 1 kg and 5 kg force-function). The residual friction in the pivot joint would be maintained for 78,000 cycles. The torque on this joint will be 15 N-M to 25 N-M (safety). This requirement is part of the Essential to Safety Classification for this device. The good dimensional accuracy of the pivot helps provide the precise fit in the required assembly. It is manufactured using high precision techniques which helps to achieve a good surface finish as well as good product consistency. The part is diligently designed for high performance and reliability. It is securely packaged inside a high quality packing box to avoid physical damage during transit and labeled with details about the product, Quality Assurance (QA) seal and shipment details.

Compatible Products

Definium 8000

Definium 8000

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
