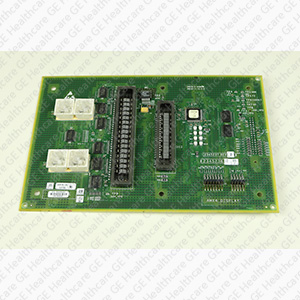

Display Board AMX 4-Variation 2
2345236-2
2139946 2345236 2345236-2-H 46-232832G1
X-Ray
Definium AMX700
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.


Product Overview

The Display Board AMX 4-Variation 2 is a circuit board that is used for Digital Imaging (DI) of the patient in various devices such as AMX 4+, Advantx, VMX PLUS, Optima XR220, Senovision, Precision 500D, UROVIEW 2800, STENOSCOP, Compax 40E and Senographe 800T. They are mainly used in the X-ray extraction. There are many components that make up the Printed Circuit Board (PCB) such as capacitors, semiconductors, resistors, programmable logic devices, Light Emitting Diode (LED), filters, switches and drivers. It also has a Vacuum Fluorescent Display (VFD). Spacers are used at certain points to create an even space between the components to ensure they will not come into contact with other components. All are connected by soldering and Room Temperature Vulcanizing (RTV) silicone rubber. It is ensured that the display face will not have any pieces of RTV rubbers and other dirt after the insertion and soldering is completed. As the components are highly sensitive, they cannot be kept above 110° C for more than two minutes. The display provides a visual indicator 16 character 14-segmented display, and 51-segmented battery charge indicator.

Compatible Products

Definium AMX700

Definium AMX700

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2139946 KIT TO REPLACE 32826-232832G1 WITH
2345236 DISPLAY AMX 4
2345236-2-H

DISPLAY AMX 4-variation 2

46-232832G1 DISPLAY AMX 4
