Product Overview

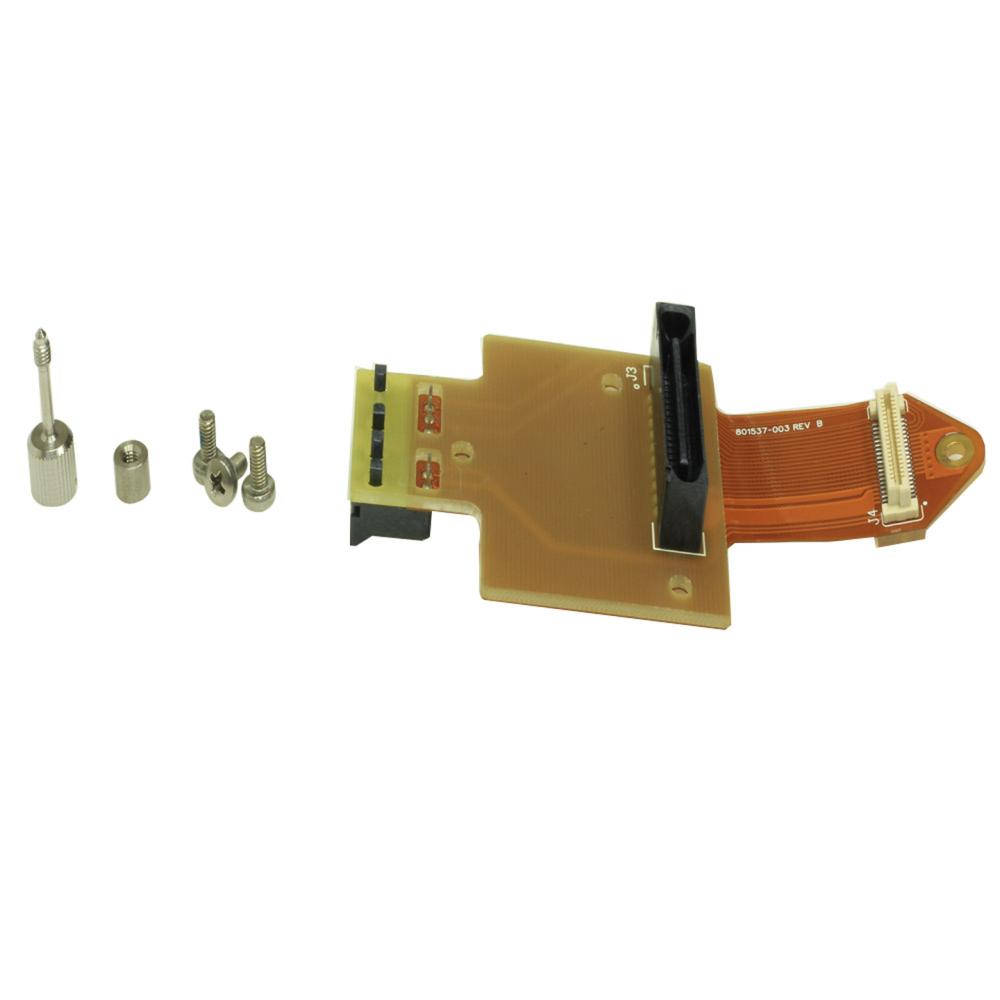

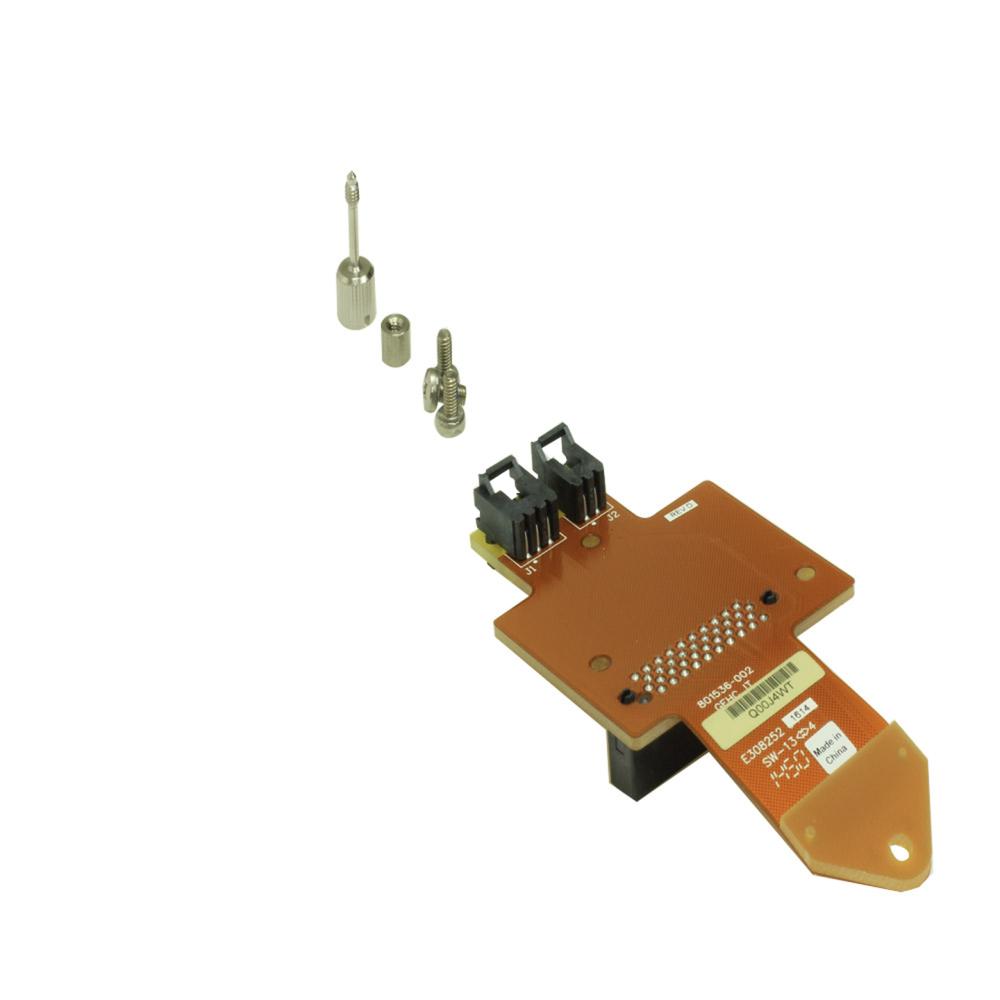

The Dash Thermal Recorder Flex provides connectivity between the Dash CPU/Power Management, the thermal writer, speaker and alarm. The assembly consists of four connectors. The J1 connector is a 3-pin connector used to connect with alarm. J2 is a 2-pin connector for speaker, J3 and J4 are 40-pin connectors used for CPU and power management of thermal writer. The raw flex is 100% continuity tested, which ensures that the board is free from shorts and opens. The board is manufactured using polyimide as base material and has 1 ounce base copper at both the sides. The unique composition of the base material possesses good thermal and chemical resistance. The manufacturing process helps to achieve good product consistency. Surface finish is provided with electroless nickel/gold and the stiffener boards are attached with flex using thermal set acrylic adhesive. This writer flex assembly is to be used with GE patient monitors DASH 3000/4000/5000.

Compatible Products

Dash 3000 (Product Code SBG)

Dash 3000 (Product Code SBG)

Dash 4000 (product code SBG)

Dash 4000 (product code SBG)

Dash 5000 (product code SBG)

Dash 5000 (product code SBG)

DASH 4000

DASH 4000

Dash 5000 (product code SDO)

Dash 5000 (product code SDO)

Dash 4000 (product code SDO)

Dash 4000 (product code SDO)

Dash 3000 (product code SDO)

Dash 3000 (product code SDO)

Dash 2500

Dash 2500

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
801536-001 FLEX ASM DASH 3000 THERMAL RECORDER
801536-002

Flex Assembly Thermal Recorder 12"inch
