Diaphragm Exhalation Valve Breathing Circuit Gas (BCG)
1505-3224-000-S
1505-3224-000
Respiratory Care
Engstrom
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.


Product Overview

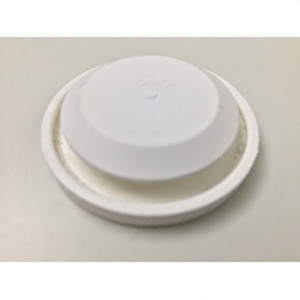

Diaphragm assembly is a disc shaped component which is used in exhalation valve for controlling air pressure. It is responsible for a valve to start or stop the process. Silicone diaphragm with pressure disks on both sides, designed to be the only moving part in the exhalation valve. This material has high transparency and excellent mechanical and electrical properties. These products can be used within a temperature range of –55° C to +230° C, and for a short time up to +300° C. The part does not have evidence of visible oils, grease, dust, dirt, lint, fibers, paper, rust, chips, cleaning solutions, machining coolant, and other foreign materials on the surface or in the internal passages when viewed with the unaided eye. All items are cleaned in such a way as to ensure all internal and external passages are clean and do not have any residue from manufacturing or cleaning inside the ports or passages. Diaphragm Exhalation Valve Breathing Circuit Gas (BCG) is used in Respiratory Care.

Compatible Products

Engstrom Carestation

Engstrom Carestation

Engstrom

Engstrom

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
1505-3224-000

• DIAPHRAGM EXH VALVE BCG
