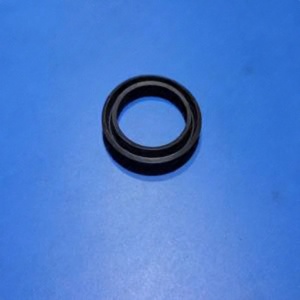

U-Cup Beveled Lip 26.98OD BCG 20.63ID 3.18W EPR POLYMOD MPOS
1503-3090-000
Anesthesia Delivery
Aespire
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.


Product Overview

The U-Cup seals, as their name implies have a U-shaped profile, including an outside static sealing Lip and an inside dynamic sealing Lip. U-Cups or U-Seals are used for both dynamic and static applications. The “U” shape energizes the sealing Lips as the application pressure increases. There are a number of Lip profiles, with the most popular being a Standard U-Cup, Deep U-Cup or Beveled Lip U-Cup (B-Type U-Cup). The Beveled Lip, or B-type U-Cup has a bevel Lip as the name states. Loaded B-type Symmetrical U-Cups are a very versatile reciprocating seal design for use up to 5000 psi. They come in two designs, unloaded or loaded. Unloaded simply means is does not have an O-ring inside. The loaded U-Cup, also known as a Polypak, has an O-ring or sometimes a quad ring within the seal to act as an expander to provide even better sealing capabilities. The loaded U-Cup is also referred to as a Polypak. Because U-Cups do not rely on initial compression to seal, they are excellent in applications that require low breakaway pressure. U-Cups are used interchangeably for the piston or rod sealing. They are commonly used in linear applications to seal the rod or piston. The U-Cups are popular due to the small gland space required, which must be a minimum of 110% of the height of the seal used. The free space is necessary to allow for the thermal expansion of the sealing material and swell due to the effects of the system fluids. The PolyMod® high-performance thermoset and thermoplastic rubber materials are polymer modified to have very low coefficients of friction and optimized wear life giving them significant advantages over conventional elastomer seal materials. Seal performance is improved using PolyMod® seal materials. This has been demonstrated in both controlled tests and actual service applications
