Cable Management Arm, Field Install
Anesthesia Delivery
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number


Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Product Overview

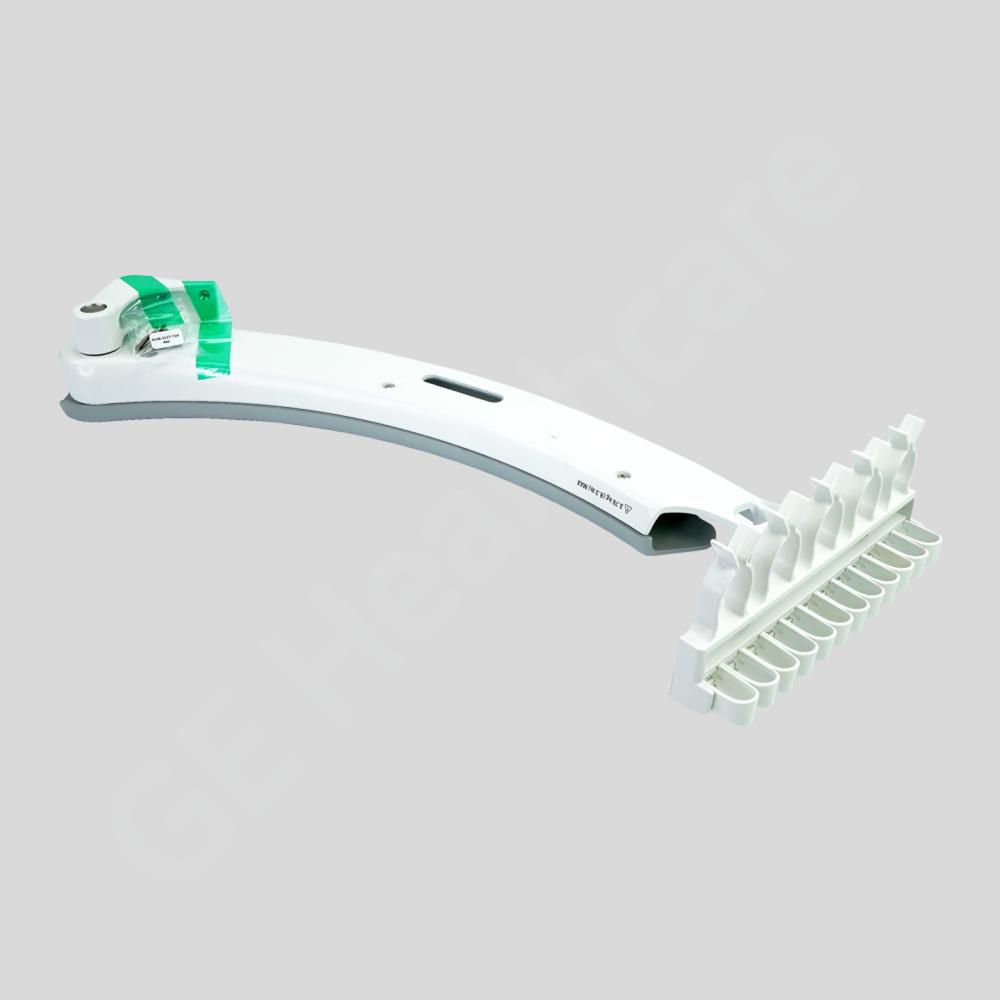

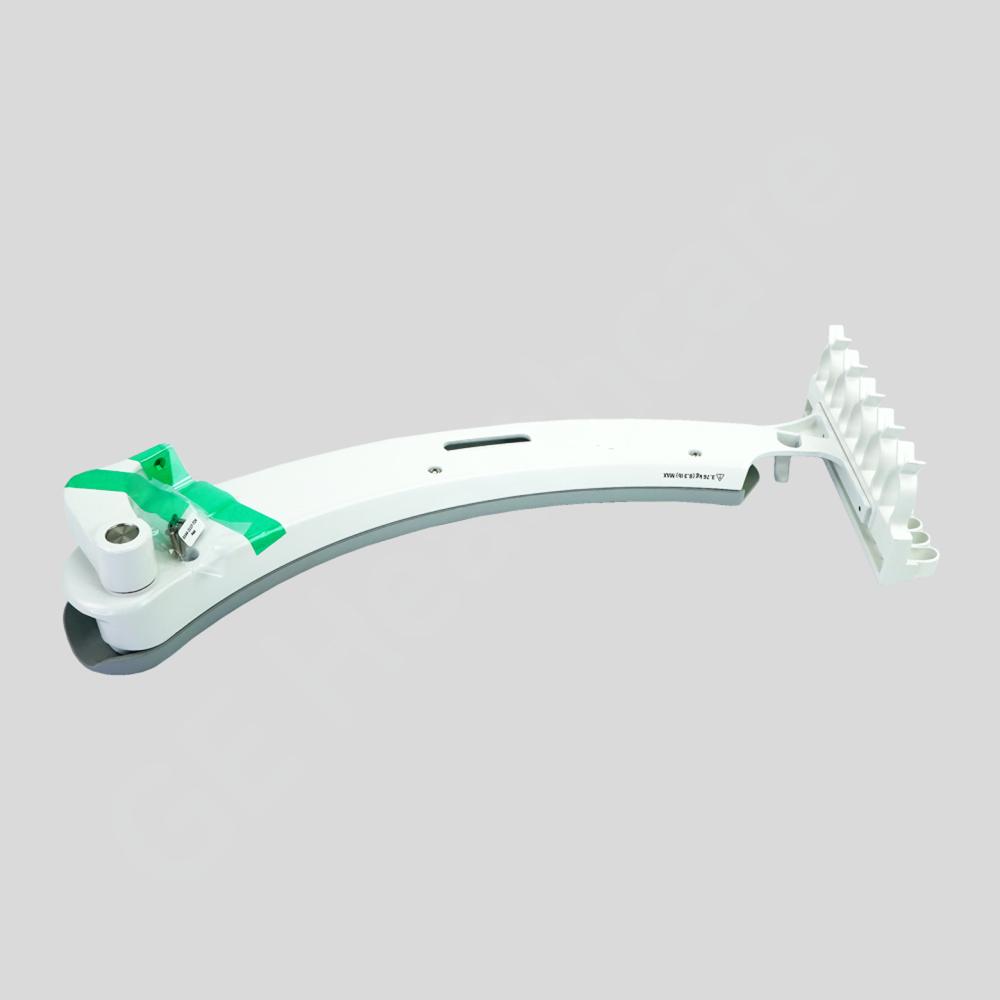

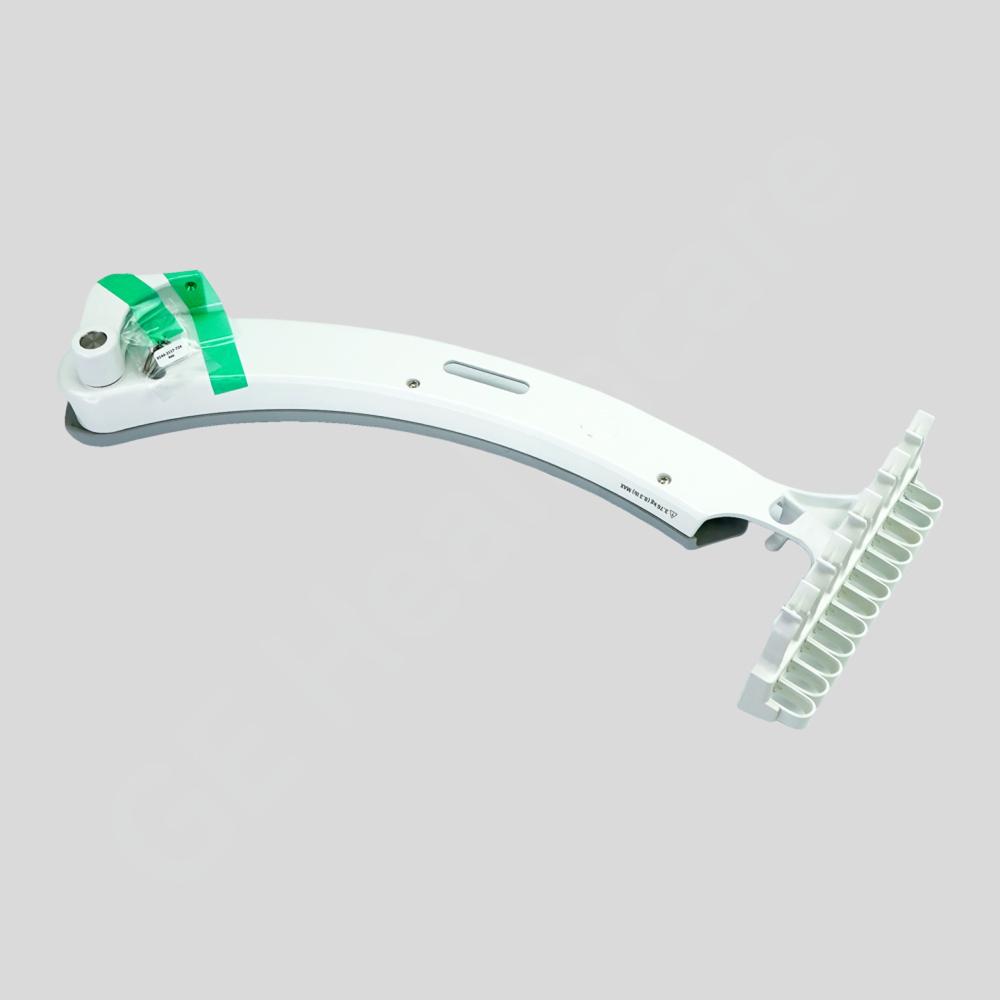

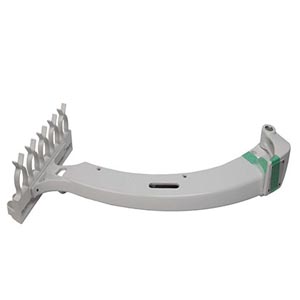

This Cable Management Arm Assembly Comprises of a multi cable retainer, cable management arm with cover, Support post for cable management arm and required hardwares for mounting the assembly. The multi cable retainer has slots to push-fit the cables securely in required position. This Munsell N9 colored cable retainer is made up of high quality Norlyn FN170 material which offers very good dimensional stability, good imapct resistance and also provides good insulating property. This cable retainer comes with two slots for mounting the cable management arm from the back side of the retainer. The cable management arm comes with cover which enclose the cables inside it. This arm can be mounted to the support post with the help of provided 83.3 mm long support pin. This support pin is made up of 303A grade stainless steel which offers very good strength and good corrosion resistance. The assembly comes with pre-fitted O-ring having 70-durometer Hardness which prevents the leakage of lubricants from the joint and helps in smooth operation of the arm. Four numbers of mounting holes with Ø 4.2 mm is provided on the support post through which the whole assembly can mounted using M4X20 Scoket Flat Head Screw. This cable arm management assembly comes with installation instruction manual.

Compatible Products

Aisys CS2

Aisys CS2
