Bag Arm Support Assembly
1009-8284-000
1009-8159-000
Anesthesia Delivery
Aespire
GE Healthcare
Add to Wish List
Sign In & Add To Cart
Sign In & Add To Cart
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.


Product Overview

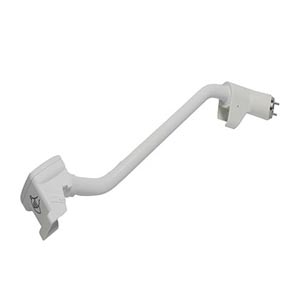

The Bag Arm Support Assembly consists of tube, spring, lock ring and yoke at the end. Bag arm is intended to act as a closing switch of the ventilator path. This assembly helps to connect the bag/vent switch to the breathing circuit module. Bag arm and its sub parts are made up of stainless steel type 303 ASTM A 582 condition. A material, which gives high strength and hardness. The tube is joined to yoke at end using induction brazing with a braze ring, alloy 30-507 braze 505. All inside surfaces to be free of oil, grease, chips, flux, excess solder, and other debris. The power coating is done to the outside surface of the tubing, and all other surfaces to be free of power coating. This tubing is RoHS compliant as per 5240305GSP. Here the solder joints are not required to be leak free. It is being used in Aestivate anesthesia machine. The other applications are Maternal-Infant Care Giraffe™ Warmer, ARC Aestiva 7100, MS CARESCAPE™ Monitor B650 and ARC Testing Service.

Compatible Products

Aespire

Aespire

Aisys

Aisys

Avance

Avance

S/5 Aespire

S/5 Aespire

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
1009-8159-000 BAG ARM SUPPORT
